Takeuchi TL10V2 Undercarriage Parts
Price range: $319.00 through $494.00
-
Priced per part. Each option names the serial range letters it fits.
Which range is my machine? Find your serial number here, then pick the parts marked with that range letter.
| Range | Configuration | Serial numbers (as KTSU lists them) |
|---|---|---|
| Range A | All | 410000667 & Up |
| Range B | All | 410000003 > 410000666 |
KTSU-made rollers, idlers and sprockets for the Takeuchi TL10V2, priced per part.
Parts by range
Serial numbers for each range are in the table above the part picker.
| Range | Drive Sprocket | Front Idler | Rear Idler | Track Roller |
|---|---|---|---|---|
| Range A All |
06816-00009 | 06814-00019 | 06813-00024 | 06813-00027 (DBL FLG RLR) 06813-00038 (TRI FLG RLR (06813-00043)) KTSU lists 2 — confirm the spec before ordering |
| Range B All |
06816-00009 | 06814-00019 | 06813-00024 | 06813-00027 (DBL FLG RLR) |

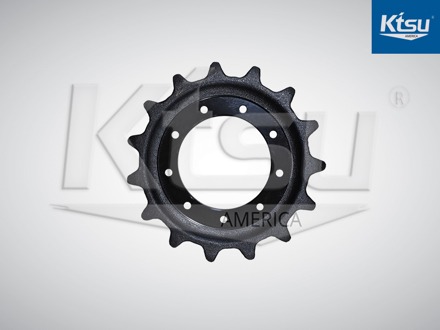

Takeuchi TL10V2 Sprockets
KTSU part number for Takeuchi TL10V2 sprockets: 06816-00009 for all ranges.

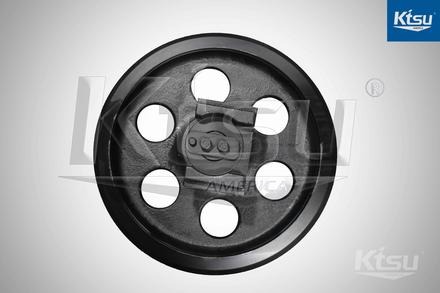

Takeuchi TL10V2 Front Idlers
KTSU part number for Takeuchi TL10V2 front idlers: 06814-00019 for all ranges.

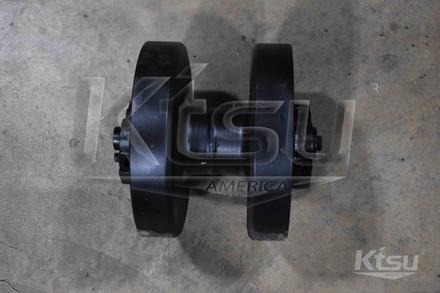

Takeuchi TL10V2 Rear Idlers
KTSU part number for Takeuchi TL10V2 rear idlers: 06813-00024 for all ranges.

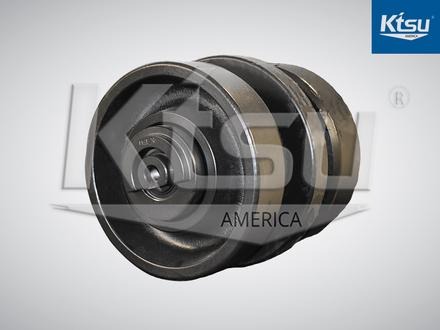

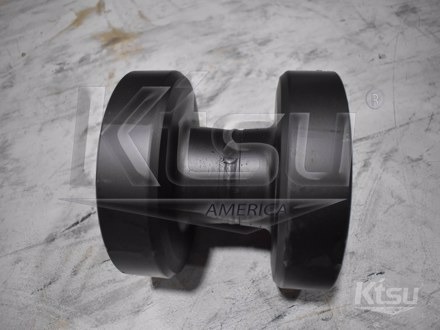

Takeuchi TL10V2 Bottom Rollers
KTSU part numbers for Takeuchi TL10V2 bottom rollers: 06813-00027 (DBL FLG RLR) for all ranges; 06813-00038 (TRI FLG RLR (06813-00043)) for Range A.
KTSU part numbers on this page: 06816-00009, 06814-00019, 06813-00024, 06813-00027, 06813-00038.
Verify your OEM part number against your serial plate before ordering.
Need tracks? Takeuchi TL10V2 Tracks.
