Takeuchi TL12V2 Undercarriage Parts
Price range: $285.00 through $816.00
-
Priced per part. Each option names the serial range letters it fits.
Which range is my machine? Find your serial number here, then pick the parts marked with that range letter.
| Range | Configuration | Serial numbers (as KTSU lists them) |
|---|---|---|
| Range A | 50LK – 14T Sprocket | all serial numbers |
| Range B | 60LK – 16T Sprocket | all serial numbers |
KTSU-made rollers, idlers and sprockets for the Takeuchi TL12V2, priced per part.
Parts by range
Serial numbers for each range are in the table above the part picker.
| Range | Drive Sprocket | Front Idler | Rear Idler | Idler | Track Roller |
|---|---|---|---|---|---|
| Range A 50LK – 14T Sprocket |
08811-60110 (14T/9BH (CTR HOLE 9.5in)) | 08811-40300 | 08811-31300 (replaces 06913-00022) | — | 08811-30500 |
| Range B 60LK – 16T Sprocket |
06916-00011 (16T/9BH 60LK Track ONLY) | — | 08811-31300 (replaces 06913-00022) | 06914-00032 | 06913-00016 (Tri Flg – TL12V2, TL12R2) 08811-30500 KTSU lists 2 — confirm the spec before ordering |
Takeuchi TL12V2 Sprockets

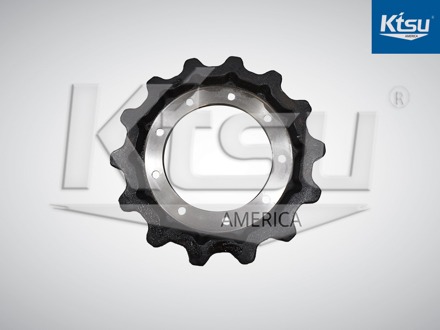

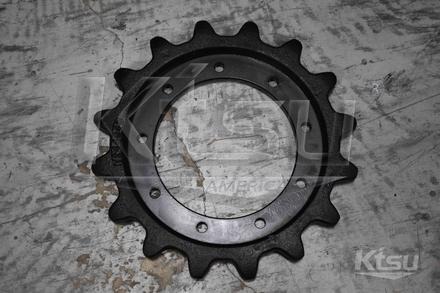

KTSU part numbers for Takeuchi TL12V2 sprockets: 06916-00011 (16T/9BH 60LK Track ONLY) for Range B; 08811-60110 (14T/9BH (CTR HOLE 9.5in)) for Range A.
Takeuchi TL12V2 Front Idlers

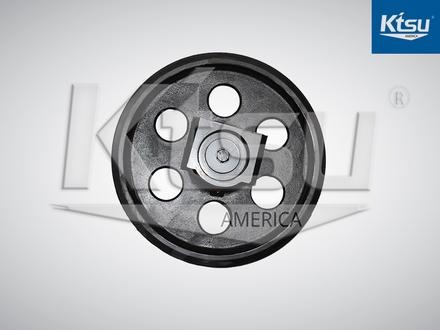

KTSU part number for Takeuchi TL12V2 front idlers: 08811-40300 for Range A.
Takeuchi TL12V2 Rear Idlers

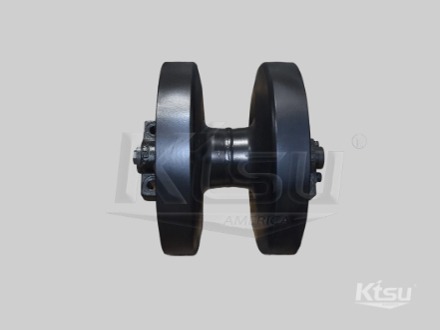

KTSU part number for Takeuchi TL12V2 rear idlers: 08811-31300 (replaces 06913-00022) for all ranges.
Takeuchi TL12V2 Idlers

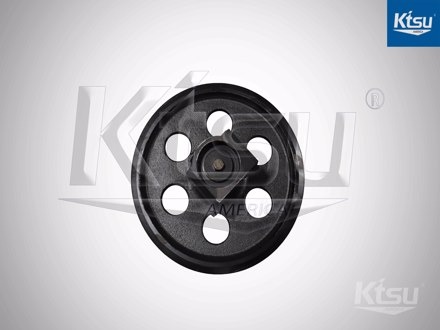

KTSU part number for Takeuchi TL12V2 idlers: 06914-00032 for Range B.
Takeuchi TL12V2 Bottom Rollers

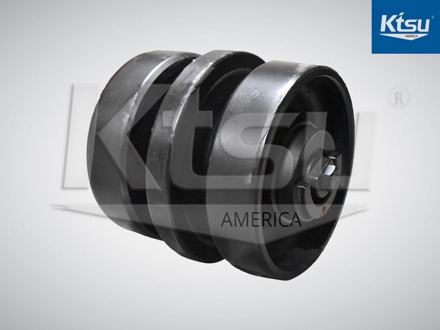

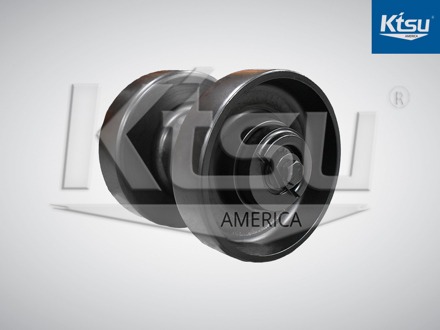

KTSU part numbers for Takeuchi TL12V2 bottom rollers: 06913-00016 (Tri Flg – TL12V2, TL12R2) for Range B; 08811-30500 for all ranges.
KTSU part numbers on this page: 06916-00011, 08811-60110, 08811-40300, 08811-31300, 06914-00032, 06913-00016, 08811-30500. Superseded: 06913-00022 — order the replacement shown.
Verify your OEM part number against your serial plate before ordering.
Need tracks? Takeuchi TL12V2 Tracks.
