Bobcat MT85 Undercarriage Parts
Price range: $136.00 through $340.00
-
Priced per part. Each option names the serial range letters it fits.
Which range is my machine? Find your serial number here, then pick the parts marked with that range letter.
| Range | Configuration | Serial numbers (as KTSU lists them) |
|---|---|---|
| Range A | OLD STYLE -(GREASED ROLLERS, IDLERS) | No serial options shown |
| Range B | NEW STYLE- (GREASELESS – KTSU ASSEMBLIES) | all serial numbers |
KTSU-made rollers, idlers and sprockets for the Bobcat MT85, priced per part.
Parts by range
Serial numbers for each range are in the table above the part picker.
| Range | Drive Sprocket | Front Idler | Rear Idler | Front/Rear Idler | Track Roller |
|---|---|---|---|---|---|
| Range A OLD STYLE -(GREASED ROLLERS, IDLERS) |
7272561 | — | — | 7109408 (W Seals-Bushings, No Zerts) | 7109409 (Triple Flg w-Seals Bushings, zerts) 7277166 (Outer Flg w seals-bushings, zerts) KTSU lists 2 — confirm the spec before ordering |
| Range B NEW STYLE- (GREASELESS – KTSU ASSEMBLIES) |
7272561 | 7405516F (Assy – w/shaft(183mm),seals, bushings) | 7405516R (Assy – w/shaft(178mm), seals, bushings) | — | 7405514 (Assy 2Flg / brg-retainer locks) 7405515 (Assy 3Flg / brg-retainer locks/ Greasless) KTSU lists 2 — confirm the spec before ordering |

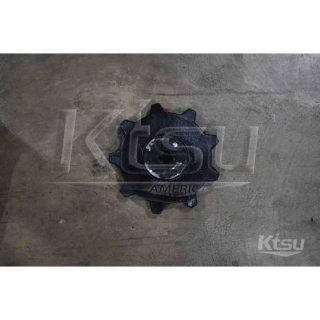

Bobcat MT85 Sprockets
KTSU part number for Bobcat MT85 sprockets: 7272561 for all ranges.
Bobcat MT85 Front Idlers
KTSU part number for Bobcat MT85 front idlers: 7405516F (Assy – w/shaft(183mm),seals, bushings) for Range B.
Bobcat MT85 Rear Idlers
KTSU part number for Bobcat MT85 rear idlers: 7405516R (Assy – w/shaft(178mm), seals, bushings) for Range B.

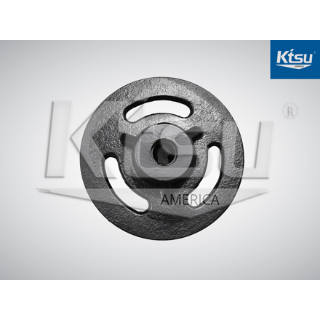

Bobcat MT85 Front/Rear Idlers
KTSU part number for Bobcat MT85 front/rear idlers: 7109408 (W Seals-Bushings, No Zerts) for Range A.
Bobcat MT85 Bottom Rollers

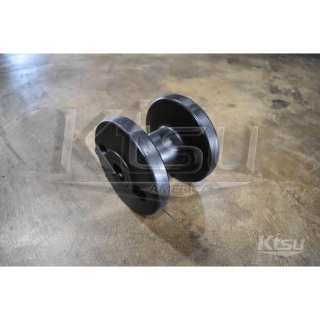

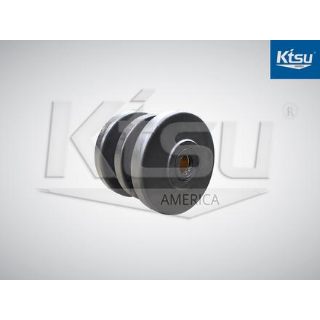

KTSU part numbers for Bobcat MT85 bottom rollers: 7109409 (Triple Flg w-Seals Bushings, zerts) for Range A; 7277166 (Outer Flg w seals-bushings, zerts) for Range A; 7405514 (Assy 2Flg / brg-retainer locks) for Range B; 7405515 (Assy 3Flg / brg-retainer locks/ Greasless) for Range B.
KTSU part numbers on this page: 7272561, 7405516F, 7405516R, 7109408, 7109409, 7277166, 7405514, 7405515.
Verify your OEM part number against your serial plate before ordering.
Need tracks? Bobcat MT85 Tracks.
You may also like…
-

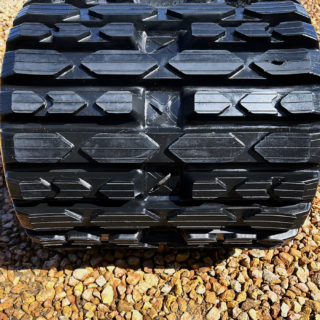

Bobcat MT85 Tracks
