Bobcat T550 Undercarriage Parts
$265.00 – $700.00Price range: $265.00 through $700.00
-
Priced per part. Each option names the serial range letters it fits.
Which range is my machine? Find your serial number here, then pick the parts marked with that range letter.
| Range | Configuration | Serial numbers (as KTSU lists them) |
|---|---|---|
| Range A | Solid Mount | A7UJ11001 > ABOVE AJZV11001 > AJZV13999 |
| Range B | Solid Mount | AJZV14001 > AJZV14999 AJZV15001 > AJZV15119 |
| Range C | Solid Mount | AJZV15120 > ABOVE; B57T11001 > ABOVE |
| Range D | Suspension | A7UJ11001 > ABOVE AJZV11001 > AJZV13999 |
| Range E | Suspension | AJZV14001 > AJZV14999 AJZV15001 > AJZV15119 |
| Range F | Suspension | AJZV15120 > ABOVE |
KTSU-made rollers, idlers and sprockets for the Bobcat T550, priced per part.
Parts by range
Serial numbers for each range are in the table above the part picker.
| Range | Drive Sprocket | Front Idler | Rear Idler | Track Roller |
|---|---|---|---|---|
| Range A Solid Mount |

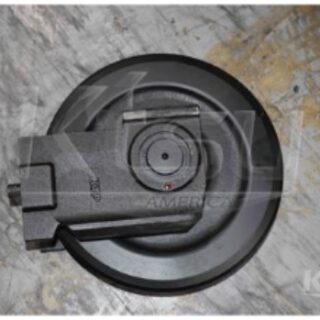

7166679 (12BH Sprocket) | 6698048 (50mm Shaft; replaces 6693237) | 6693238 (3/4 in Mounting Bolt) | 6689371 (3/4 in Mounting Bolt) |
| Range B Solid Mount |
7166679 (12BH Sprocket) | 7229101 | 7233630 | 7228629 (Tri Flg) |
| Range C Solid Mount |
7204050 (15BH Sprocket) | 7229101 | 7233630 | 7228629 (Tri Flg) |
| Range D Suspension |

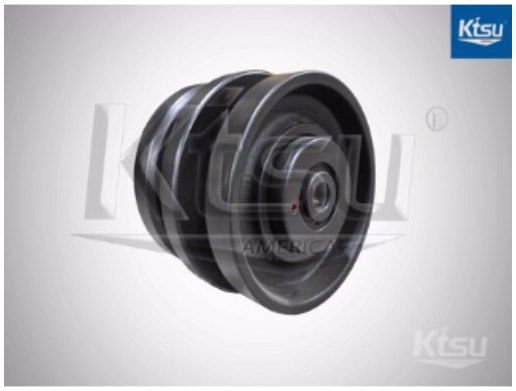

7166679 (12BH Sprocket) | 6698048 (50mm Shaft; replaces 6693237) | 6697933 (7/8 in Mounting Bolt) | 6693239 (7/8 in Mounting Bolt) |
| Range E Suspension |
7166679 (12BH Sprocket) | 7229101 | 7233630 | 7233399 |
| Range F Suspension |
7204050 (15BH Sprocket) | 7229101 | 7233630 | 7233399 |
KTSU part numbers on this page: 7166679, 7204050, 6698048, 7229101, 6693238, 6697933, 7233630, 6689371, 6693239, 7228629, 7233399. Superseded: 6693237 — order the replacement shown.
Verify your OEM part number against your serial plate before ordering.
Need tracks? Bobcat T550 Tracks.
