Bobcat T630 Undercarriage Parts
Price range: $284.00 through $579.00
-
Priced per part. Each option names the serial range letters it fits.
Which range is my machine? Find your serial number here, then pick the parts marked with that range letter.
| Range | Configuration | Serial numbers (as KTSU lists them) |
|---|---|---|
| Range A | Solid Mount | A7PU11011 > 14999 |
| Range B | Solid Mount | A7PU15001 > 16099 AJDT13001 > 15299 |
| Range C | Solid Mount | A7PU16100 > ABOVE |
| Range D | Solid Mount | AJDT11001 > 129999 |
| Range E | Solid Mount | AJDT15300 > ABOVE |
| Range F | Suspension Mount | AJDT11001 > AJDT12999 ; A7PU11001 – A7PU13475 ; A7PU13506 ; A7PU13476 – A7PU13505 , A7PU13507 – A7PU14999 |
| Range G | Suspension Mount | AJDT13001 – AJDT15299 ; A7PU15001 – A7PU16099 |
| Range H | Suspension Mount | AJDT15300 & ABOVE ; A7PU16100 & ABOVE |
KTSU-made rollers, idlers and sprockets for the Bobcat T630, priced per part.
Parts by range
Serial numbers for each range are in the table above the part picker.
| Range | Drive Sprocket | Front Idler | Rear Idler | Track Roller |
|---|---|---|---|---|
| Range A Solid Mount |

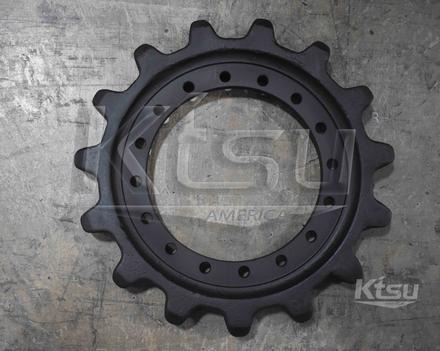

7165109 (5.75in Inner Depth (6 BH, 1 spd)) 7196807 ((8 BH, 2 spd)) 7270159 KTSU lists 3 — confirm the spec before ordering |
6698048 (50mm Shaft; replaces 6693237) | 6693238 (3/4 in Mounting Bolt) | 6689371 (3/4 in Mounting Bolt) |
| Range B Solid Mount |
7165109 (5.75in Inner Depth (6 BH, 1 spd)) 7196807 ((8 BH, 2 spd)) KTSU lists 2 — confirm the spec before ordering |
7240006 | 7233630 | 7228629 (Tri Flg) |
| Range C Solid Mount |
— | 7240006 | 7233630 | 7228629 (Tri Flg) |
| Range D Solid Mount |
7165109 (5.75in Inner Depth (6 BH, 1 spd)) 7196807 ((8 BH, 2 spd)) KTSU lists 2 — confirm the spec before ordering |
6698048 (50mm Shaft; replaces 6693237) | 6693238 (3/4 in Mounting Bolt) | 6689371 (3/4 in Mounting Bolt) |
| Range E Solid Mount |
7270159 | 7240006 | 7233630 | 7228629 (Tri Flg) |
| Range F Suspension Mount |
7165109 (5.75in Inner Depth (6 BH, 1 spd)) 7196807 ((8 BH, 2 spd)) KTSU lists 2 — confirm the spec before ordering |
6698048 (50mm Shaft; replaces 6693237) | 6697933 (7/8 in Mounting Bolt) | 6693239 (7/8 in Mounting Bolt) |
| Range G Suspension Mount |
7165109 (5.75in Inner Depth (6 BH, 1 spd)) 7196807 ((8 BH, 2 spd)) KTSU lists 2 — confirm the spec before ordering |
7240006 | 7233630 | 7243576 |
| Range H Suspension Mount |
7270159 | 7240006 | 7233630 | 7243576 |
KTSU part numbers on this page: 7165109, 7196807, 7270159, 6698048, 7240006, 6693238, 6697933, 7233630, 6689371, 6693239, 7228629, 7243576. Superseded: 6693237 — order the replacement shown.
Verify your OEM part number against your serial plate before ordering.
Need tracks? Bobcat T630 Tracks.
